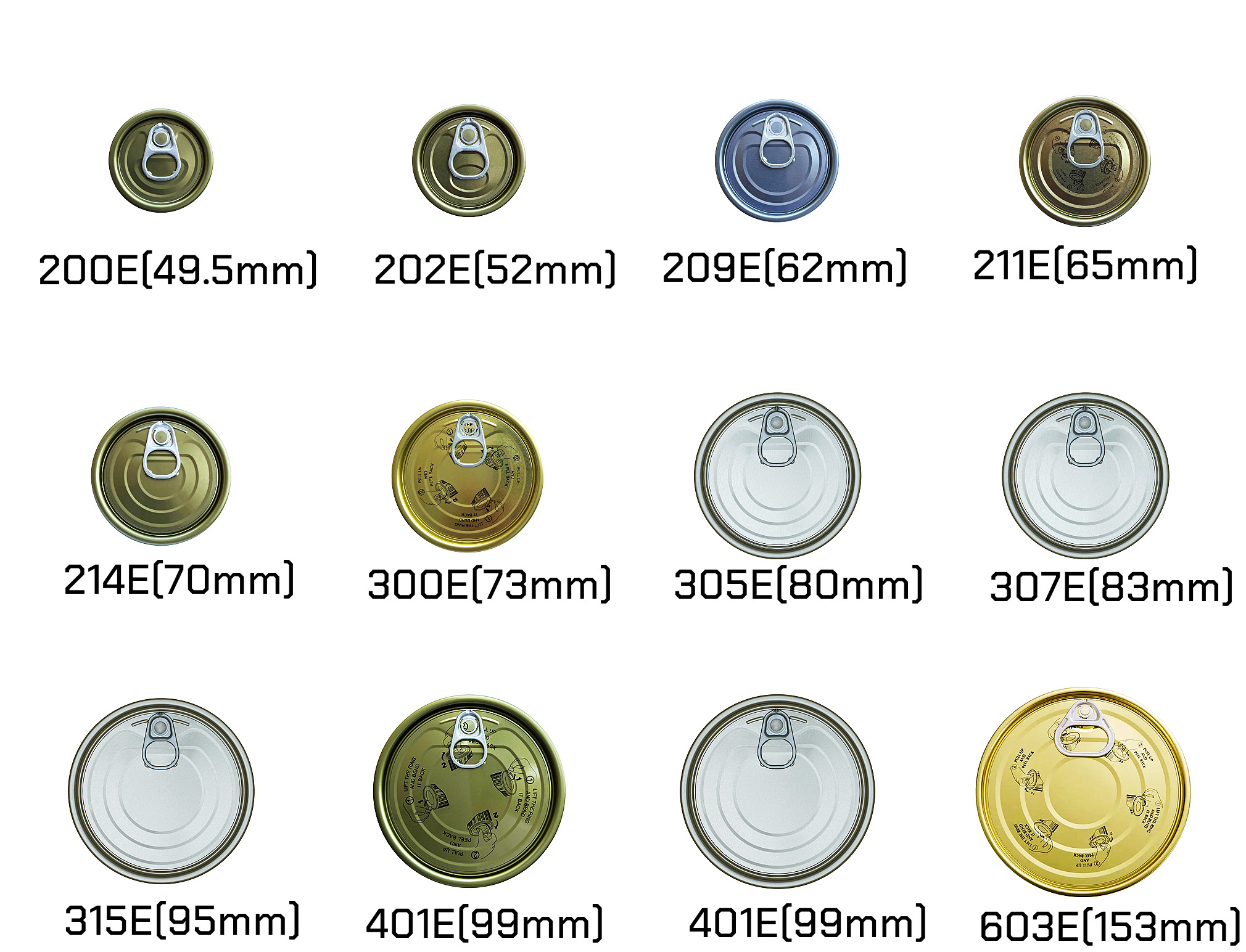

Table of Easy Open Ends
200E(50MM) Easy Open Ends
| Product Attributes | Property Value | Product Attributes | Property Value |
|---|---|---|---|
| Can Diameter | 49.5mm | Thickness | 0.18mm |
| Material | ETP or TFS, Bao Steel guaranteed | Outside Coating | Clear or Golden Lacquer |
| Inside Coating | Golden, White Enamel, Aluminized, BPA-IN | Printing | With or Without Instruction, Lithography |
| Applications | For All Food Cans with Vegetable, Fruits, Meat, Sea Food, Milk, Oil | Classification | Easy Open Ends |
| Outside Diameter | 58.7±0.1mm | Compound Weight | 45-65mg |
| Curl Height | 1.95±0.1mm | Pop Force | ≤30N |
| Countersink Depth | 3.35±0.1mm | Pull Force | ≤70N |
| Curl Opening | ≥2.80mm | Buckle Resistance | ≥240Kpa |
202E(52MM) Easy Open Ends
| Product Attributes | Property Value | Product Attributes | Property Value |
|---|---|---|---|
| Can Diameter | 52.3mm | Thickness | 0.18mm |
| Material | ETP or TFS, Bao Steel guaranteed | Outside Coating | Clear or Golden Lacquer |
| Inside Coating | Golden, White Enamel, Aluminized, BPA-IN | Printing | With or Without Instruction, Lithography |
| Applications | For All Food Cans with Vegetable, Fruits, Meat, Sea Food, Milk, Oil | Classification | Easy Open Ends |
| Outside Diameter | 61.1±0.1mm | Compound Weight | 45-65mg |
| Curl Height | 1.95±0.1mm | Pop Force | ≤30N |
| Countersink Depth | 4.00±0.1mm | Pull Force | ≤70N |
| Curl Opening | ≥2.80mm | Buckle Resistance | ≥240Kpa |
209E(62MM) Easy Open Ends
| Product Attributes | Property Value | Product Attributes | Property Value |
|---|---|---|---|
| Can Diameter | 62.5mm | Thickness | 0.18mm |
| Material | ETP or TFS, Bao Steel guaranteed | Outside Coating | Clear or Golden Lacquer |
| Inside Coating | Golden, White Enamel, Aluminized, BPA-IN | Printing | With or Without Instruction, Lithography |
| Applications | For All Food Cans with Vegetable, Fruits, Meat, Sea Food, Milk, Oil | Classification | Easy Open Ends |
| Outside Diameter | 72.0±0.1mm | Compound Weight | 45-65mg |
| Curl Height | 1.95±0.1mm | Pop Force | ≤30N |
| Countersink Depth | 4.00±0.1mm | Pull Force | ≤70N |
| Curl Opening | ≥2.80mm | Buckle Resistance | ≥240Kpa |
211E(65MM) Easy Open Ends
| Product Attributes | Property Value | Product Attributes | Property Value |
|---|---|---|---|
| Can Diameter | 65.3mm | Thickness | 0.18mm |
| Material | ETP or TFS, Bao Steel guaranteed | Outside Coating | Clear or Golden Lacquer |
| Inside Coating | Golden, White Enamel, Aluminized, BPA-IN | Printing | With or Without Instruction, Lithography |
| Applications | For All Food Cans with Vegetable, Fruits, Meat, Sea Food, Milk, Oil | Classification | Easy Open Ends |
| Outside Diameter | 74.2±0.1mm | Compound Weight | 45-65mg |
| Curl Height | 1.95±0.1mm | Pop Force | ≤30N |
| Countersink Depth | 4.00±0.1mm | Pull Force | ≤70N |
| Curl Opening | ≥2.80mm | Buckle Resistance | ≥240Kpa |
214E(70MM) Easy Open Ends
| Product Attributes | Property Value | Product Attributes | Property Value |
|---|---|---|---|
| Can Diameter | 69.90mm. | Thickness | 0.18mm |
| Material | ETP or TFS, Bao Steel guaranteed | Outside Coating | Clear or Golden Lacquer |
| Inside Coating | Golden, White Enamel, Aluminized, BPA-IN | Printing | With or Without Instruction, Lithography |
| Applications | For All Food Cans with Vegetable, Fruits, Meat, Sea Food, Milk, Oil | Classification | Easy Open Ends |
| Outside Diameter | 78.9±0.1mm | Compound Weight | 45-65mg |
| Curl Height | 1.95±0.1mm | Pop Force | ≤30N |
| Countersink Depth | 4.25±0.1mm | Pull Force | ≤70N |
| Curl Opening | ≥2.80mm | Buckle Resistance | ≥240Kpa |
300E(73MM) Easy Open Ends
| Product Attributes | Property Value | Product Attributes | Property Value |
|---|---|---|---|
| Can Diameter | 73.00mm | Thickness | 0.19mm |
| Material | ETP or TFS, Bao Steel guaranteed | Outside Coating | Clear or Golden Lacquer |
| Inside Coating | Golden, White Enamel, Aluminized, BPA-IN | Printing | With or Without Instruction, Lithography |
| Applications | For All Food Cans with Vegetable, Fruits, Meat, Sea Food, Milk, Oil | Classification | Easy Open Ends |
| Outside Diameter | 82.2±0.1mm | Compound Weight | 45-65mg |
| Curl Height | 2.00±0.1mm | Pop Force | ≤30N |
| Countersink Depth | 4.25±0.1mm | Pull Force | ≤70N |
| Curl Opening | ≥2.80mm | Buckle Resistance | ≥240Kpa |
305E(80MM) Easy Open Ends
| Product Attributes | Property Value | Product Attributes | Property Value |
|---|---|---|---|
| Can Diameter | 80.3mm | Thickness | 0.20mm |
| Material | ETP or TFS, Bao Steel guaranteed | Outside Coating | Clear or Golden Lacquer |
| Inside Coating | Golden, White Enamel, Aluminized, BPA-IN | Printing | With or Without Instruction, Lithography |
| Applications | For All Food Cans with Vegetable, Fruits, Meat, Sea Food, Milk, Oil | Classification | Easy Open Ends |
| Outside Diameter | 90.0±0.1mm | Compound Weight | 45-65mg |
| Curl Height | 2.00±0.1mm | Pop Force | ≤30N |
| Countersink Depth | 4.20±0.1mm | Pull Force | ≤70N |
| Curl Opening | ≥2.80mm | Buckle Resistance | ≥240Kpa |
307E(83MM) Easy Open Ends
| Product Attributes | Property Value | Product Attributes | Property Value |
|---|---|---|---|
| Can Diameter | 83.30mm. | Thickness | 0.20mm. |
| Material | ETP or TFS, Bao Steel guaranteed | Outside Coating | Clear or Golden Lacquer |
| Inside Coating | Golden, White Enamel, Aluminized, BPA-IN | Printing | With or Without Instruction, Lithography |
| Applications | For All Food Cans with Vegetable, Fruits, Meat, Sea Food, Milk, Oil | Classification | Easy Open Ends |
| Outside Diameter | 92.9±0.1mm | Compound Weight | 45-65mg |
| Curl Height | 2.00±0.1mm | Pop Force | ≤30N |
| Countersink Depth | 4.50±0.1mm | Pull Force | ≤70N |
| Curl Opening | ≥2.80mm | Buckle Resistance | ≥240Kpa |
315E(95MM) Easy Open Ends
| Product Attributes | Property Value | Product Attributes | Property Value |
|---|---|---|---|
| Can Diameter | 95.50mm. | Thickness | 0.21mm. |
| Material | ETP or TFS, Bao Steel guaranteed | Outside Coating | Clear or Golden Lacquer |
| Inside Coating | Golden, White Enamel, Aluminized, BPA-IN | Printing | With or Without Instruction, Lithography |
| Applications | For All Food Cans with Vegetable, Fruits, Meat, Sea Food, Milk, Oil | Classification | Easy Open Ends |
| Outside Diameter | 105.2±0.1mm | Compound Weight | 45-65mg |
| Curl Height | 2.00±0.1mm | Pop Force | ≤30N |
| Countersink Depth | 4.30±0.1mm | Pull Force | ≤70N |
| Curl Opening | ≥2.80mm | Buckle Resistance | ≥240Kpa |
401E(99MM) Easy Open Ends
| Product Attributes | Property Value | Product Attributes | Property Value |
|---|---|---|---|
| Can Diameter | 98.90mm. | Thickness | 0.22mm. |
| Material | ETP or TFS, Bao Steel guaranteed | Outside Coating | Clear or Golden Lacquer |
| Inside Coating | Golden, White Enamel, Aluminized, BPA-IN | Printing | With or Without Instruction, Lithography |
| Applications | For All Food Cans with Vegetable, Fruits, Meat, Sea Food, Milk, Oil | Classification | Easy Open Ends |
| Outside Diameter | 108.85±0.1mm | Compound Weight | 45-65mg |
| Curl Height | 2.00±0.1mm | Pop Force | ≤30N |
| Countersink Depth | 4.55±0.1mm | Pull Force | ≤70N |
| Curl Opening | ≥2.80mm | Buckle Resistance | ≥240Kpa |
603E(153MM) Easy Open Ends
| Product Attributes | Property Value | Product Attributes | Property Value |
|---|---|---|---|
| Can Diameter | 153.40mm. | Thickness | 0.26mm. |
| Material | ETP or TFS, Bao Steel guaranteed | Outside Coating | Clear or Golden Lacquer |
| Inside Coating | Golden, White Enamel, Aluminized, BPA-IN | Printing | With or Without Instruction, Lithography |
| Applications | For All Food Cans with Vegetable, Fruits, Meat, Sea Food, Milk, Oil | Classification | Easy Open Ends |
| Outside Diameter | 163.6±0.1mm | Compound Weight | 45-65mg |
| Curl Height | 2.00±0.1mm | Pop Force | ≤30N |
| Countersink Depth | 5.35±0.1mm | Pull Force | ≤70N |
| Curl Opening | ≥2.80mm | Buckle Resistance | ≥240Kpa |
I. Types of Easy Open Ends
- Tinplate/Tin Free Steel EOE
- Full Aperture Opening: Complete lid removal (e.g., tuna, vegetables, oils)
- Partial Opening: Controlled access (e.g., beverages, oils)
- Special Shapes: Oval, Pear, Quarter Club, Rectangle
- Aluminum EOE
- Ring Pull Type: Traditional pull-tab design
- Stay-on-Tab (SOT): Tab remains attached to can
- Large Opening Ends (LOE): Wide access for beverages
- Safety Feature Covers: Anti-cut edges for dry goods
| Category | Products/Sectors | Material Options |
|---|---|---|
| Food Products | Tuna, tomato paste, fruits, juices | Tinplate, Aluminum |
| Dry Goods | Coffee powder, milk powder, cereals | Tinplate, Aluminum |
| Beverages | Carbonated drinks, beer, pasteurized juice | Aluminum (SOT/LOE) |
| Oils & Non-Food | Vegetable oil, motor oil | Tinplate, Aluminum |
| Retort/Sterilized | Ready-to-eat meals, UHT milk | Aluminum (Special lacquer) |
- Custom Printing: Brand logos/promotions
- Lacquer Options: • External: Gold/Clear • Internal: Epoxy phenolic/Organosol/Aluminized • Certified food-grade lacquers
- Tinplate: 52mm(202), 63mm(209), 99mm(401), etc.
- Aluminum: 50mm(200), 57mm(206), 63mm(209) SOT/LOE

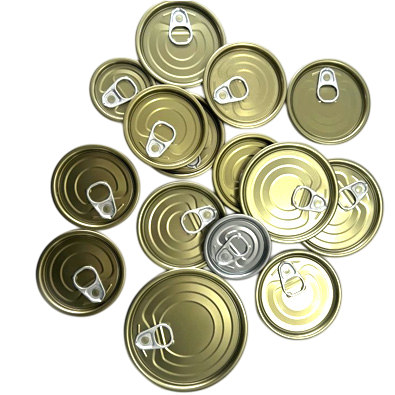

Tinplate easy open ends
Tinplate easy open ends
Tinplate Easy Open Ends are metal closures crafted from 0.18-0.25mm-thick tin-coated steel sheets with precision-stamped pull tab mechanisms. Intended to seal food, beverage and industrial cans securely, they feature pre-scored opening panels (either full aperture or partial aperture) activated by riveted aluminum or steel tabs for opening or closing purposes. Their solderability provides hermetic sealing while their epoxy/polyester lacquers increase corrosion resistance as well as printability.
Common applications include canned tuna, pet food, soups and paint containers that require easy access and product preservation. Innovative designs incorporate safety edges that prevent sharp exposure as well as tamper-evident seals for consumer trust. In line with FDA, EU 1935/2004 and ISO 11949 standards these ends support high speed canning lines as well as withstand retort sterilization (up to 130 degrees C).
Tinplate materials meet all recycling goals while accommodating diverse packaging needs through customizable diameters (52-153mm). Their 100% recyclability ties in nicely with circular economy goals, while customizable diameters (52-153mm) meet diverse packaging demands. Tinplate’s durability ensures reliable performance even in acidic or high pressure environments and even beats aluminum in terms of structural rigidity.
Easy open can ends
Easy open can ends
Easy Open Can Ends are metal lids equipped with pull-tab mechanisms that enable tool-free access. Crafted from either tinplate or aluminum, they feature pre-scored panels, safety edges and lacquered coatings for corrosion resistance - ideal for food, drinks and chemicals that must maintain freshness, sterilization processes or food safety standards. Recyclable and customizable sizes (52-153mm).
Easy open end packaging
Easy Open End Packaging is a consumer-friendly packaging solution composed of metal cans with integrated pull-tab lids designed for convenient access. Primarily constructed of tinplate, TFS or aluminum material, these packages feature pre-scored openings with tamper evident seals to preserve freshness of food (e.g. soups), beverages (e.g. soda) and industrial products (paints, chemicals). Designs include ring pull, stay on tab and full aperture ends compatible with high speed filling lines as well as customizable diameters (52-153mm) while meeting FDA/EU safety standards while lightening material usage while supporting sustainable initiatives – 100% recyclable in support of green initiatives!
Easy open ends manufacturers
Easy Open Ends Manufacturers: These providers specialize in producing custom metal closures for food, beverage, and industrial packaging applications.
Specialized in manufacturing tinplate, TFS and aluminum easy-open ends using high-speed stamping lines and advanced lacquering (epoxy/polyester), these manufacturers utilize advanced lacquering processes (epoxy/polyester) for durability and corrosion resistance in line with FDA/EU compliance.
Customizable in diameters (52–153mm), they specialize in lightweighting by 20–25%, while using BPA-free coatings and providing tamper-evident features to cans, aerosols and pails from global brands.
Lightweighting expertise includes reducing material use by 15–20%, as well as BPA-free coatings and tamper-evident features — serving global brands with sustainable practices (100% recyclable materials) while providing rapid OEM/ODM solutions for hermetic sealing needs and branding requirements.
Easy open end production line
Easy Open End Production Line: An automated system designed to produce pull-tab mechanisms from metal coils such as tinplate, TFS or aluminum with precise stamping, scoring rivet attachment, lacquering (epoxy/polyester) and curing processes using high speed presses (100-400 ends/minute) ensure consistent production while vision systems monitor for any defects or corrosion resistance issues; lines integrate coating units for corrosion resistance compliance as well as FDA/EU food-grade certification (customizable diameters 52-153mm and designs such as ring pull, full aperture). Output range 15-30 million ends/month.
EOE easy open ends
Easy Open Ends (EOE), also referred to as Easy Open Lids or Covers, are specialized metal closures for cans featuring pull-tab mechanisms for tool-free access. Made of Electronic Tinplate Plate (ETP), Tinplate Plate (TP), Tin Free Steel Plates (TFS), or Aluminum (ALU), EOE provide convenient opening, leak proof sealing and extended shelf life – an invaluable combination.
EOEs come in sizes between 50mm and 153mm with various diameters (round, oval, pear and rectangular) as well as shapes (round, oval pear or rectangular), full aperture or partial aperture designs to suit various applications including seafood, fruits vegetables tomato paste meat coffee powder milk powder applications.
EOEs feature lacquered coatings (clear, gold, white and epoxy) designed to offer corrosion resistance and FDA compliance while supporting sterilization processes up to 130degC. Compatible with different can bodies (metal, PET, paper or composite), EOEs offer consumers convenience while simultaneously safeguarding product preservation.
Full aperture easy open end
Full Aperture Easy Open Ends are unique metal closures designed to allow easy removal of can tops via pull-tab mechanisms. Constructed from aluminum or tinplate/TFS (0.15-0.28mm thickness), they feature pre-scored panels with riveted tabs for tool-free access.”
These ends, available in standard diameters (52-515mm), can accommodate food applications (tuna, fruits and vegetables) as well as dry goods such as coffee, milk powder and nuts. Their hermetic design helps preserve product freshness while various coatings such as clear gold or aluminum paste provide corrosion resistance.
Benefits of our product accessibility, compatibility with 2/3-piece cans and safety-edge technology to prevent cuts while using. Its recyclability and customizable printing options enhance both functionality and brand visibility.

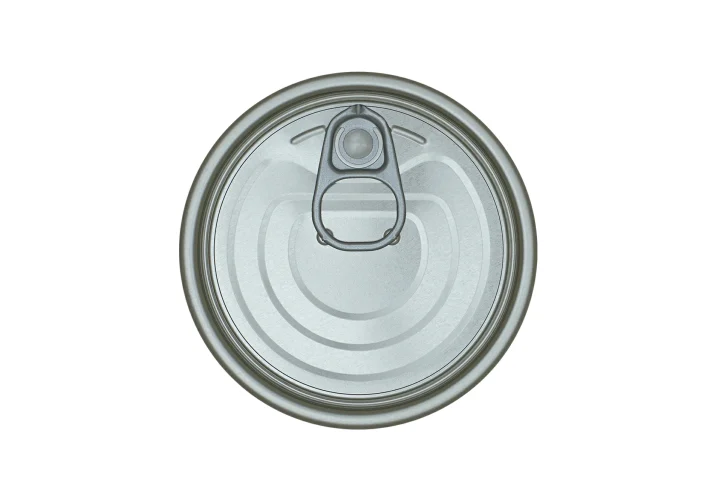

Aluminum easy open end
Aluminum Easy Open Ends are lightweight, corrosion-resistant closures designed for beverage and food packaging featuring a pull-tab mechanism (ring pull or stay on tab ) on a pre-scored panel for effortless opening and closing. Made of high-grade aluminum (0.20-0.25mm thick), these ends allow easy access while still ensuring hermetic sealing with epoxy or polyester lacquers, ideal for carbonated drinks, beer, and ready-to-eat meals that require internal pressure or retort sterilization (up to 130degC). Compliant with FDA/EU standards, they feature tamper-evident features and BPA-free coatings. Customizable in diameters (52-153mm) and designs (full/partial aperture), their 100% recyclable status supports eco-friendly initiatives while being produced via high speed stamping lines to maximize precision and cost efficiency.

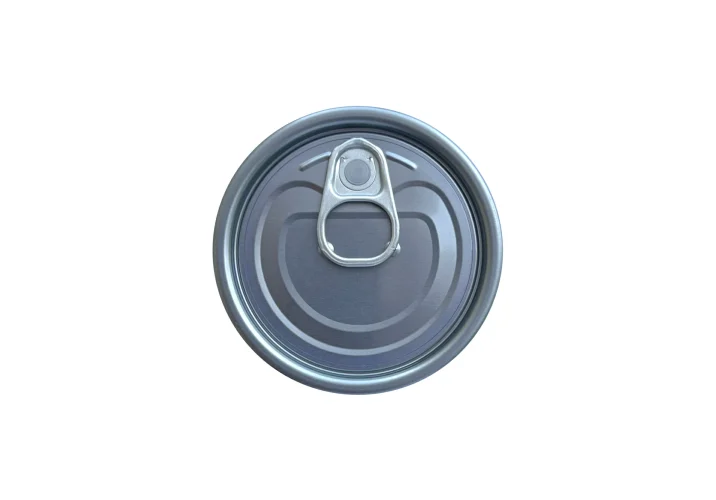

Aluminum easy open end lid
Aluminium Easy Open End Lids are lightweight, corrosion-resistant closures featuring pull-tab mechanisms (ring pull or stay-on tab) for tool-free access to canned products. Crafted from aluminum alloy 5182 for superior strength and hermetic sealing for freshness and integrity of product freshness and integrity preservation.”
These lids, available in sizes of 200#, 202# and 206# with full aperture or partial opening designs, are suitable for beverages (carbonated drinks/beers), food products such as tuna/fruits as well as industrial applications. Their construction includes prescored panels with safety edges for extra safety as well as food-grade lacquer coatings (organosol/epoxy).
Benefits of our 100% recyclability design include customizable printing options, FDA/safety compliance standards compliance, reduced shipping costs while increasing consumer convenience through reliable opening mechanisms that withstand pasteurization processes or high pressure environments. The lightweight design reduces shipping costs while simultaneously improving consumer convenience through easy opening mechanisms able to withstand pasteurization processes or high pressure environments.”
What are the advantages of tinplate easy open ends
Tinplate Easy Open Ends offer significant advantages in packaging technology by providing reliable sealing performance coupled with tool-free access.
The steel base provides outstanding strength, durability, and pressure resistance; effectively withstanding impacts as well as temperature fluctuations during processing and sterilization.
Tin coating offers superior corrosion resistance while improving product freshness by acting as a shield against moisture, light, and oxygen.
Furthermore, this practice promotes hygiene by eliminating can openers that could introduce harmful bacteria into products.
Tinplate easy open ends feature 100% recycling for environmental sustainability, while their smooth surfaces make printing and branding appealing.
Perfect for applications from food to industrial goods, their uniform thickness and tank mouth designs ensure seal integrity even during high temperature processing.
